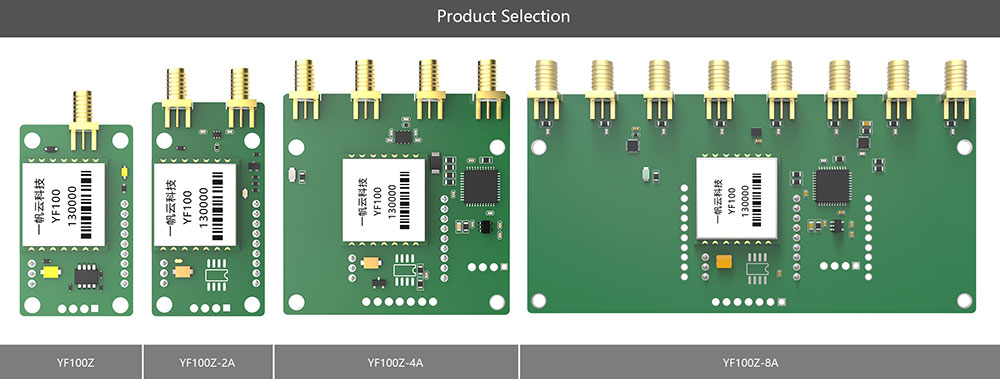

YF100Z-2A/YF100Z-4A is a 915MHz multi-channel ultra-high frequency RFID module launched by Yifan Cloud Technology, with dual-channel and four-channel antenna interfaces. The product adopts direct-plug THT package, supports TTL/RS485 serial communication, and the RF reader card supports ISO18000-6C protocol. Simple instructions can realize the reading of UHF label, the product has 26dbm output, can realize the reading range of up to 20 meters, is UHF handheld computer, desktop card issuer, desktop card reader product development excellent choice.
In-line THT package, Plug-and-Play
There is no need to design the bottom plate, the dupont line is connected to the existing serial port, you can test and use

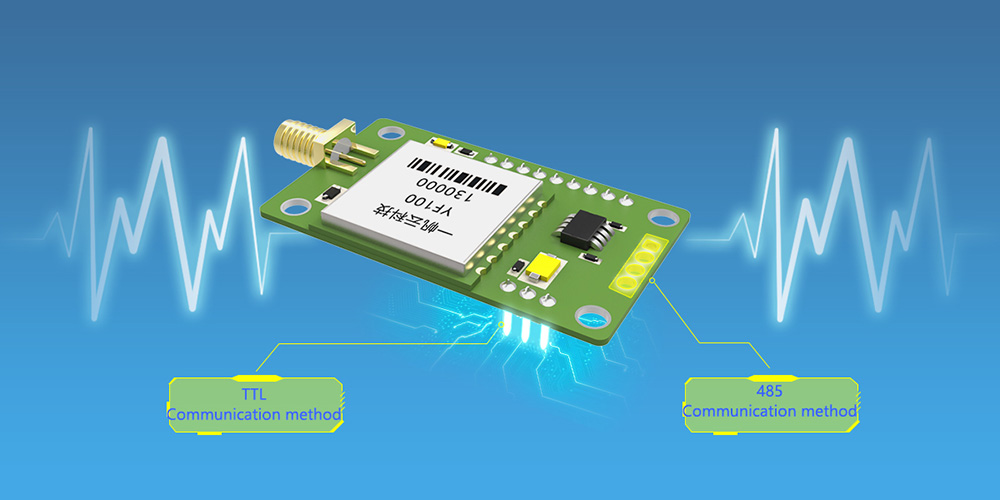

Supports TTL/RS485 communication
Easy to use design
Three-wire connection, one command can read
Two antenna installation methods
Integrated antenna interface (SMA and U.F.L) design to use UHF RFID without knowledge of RF design

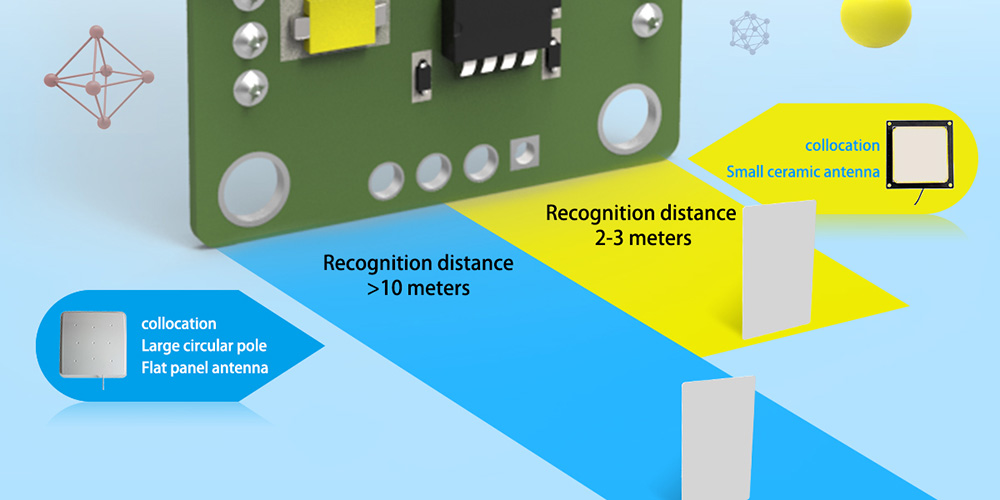

The card reading distance is far
Small ceramic antenna stable recognition distance of 2-3 meters
Large circularly polarized plate antenna > 10 m
Module support series reading card, greater perception range

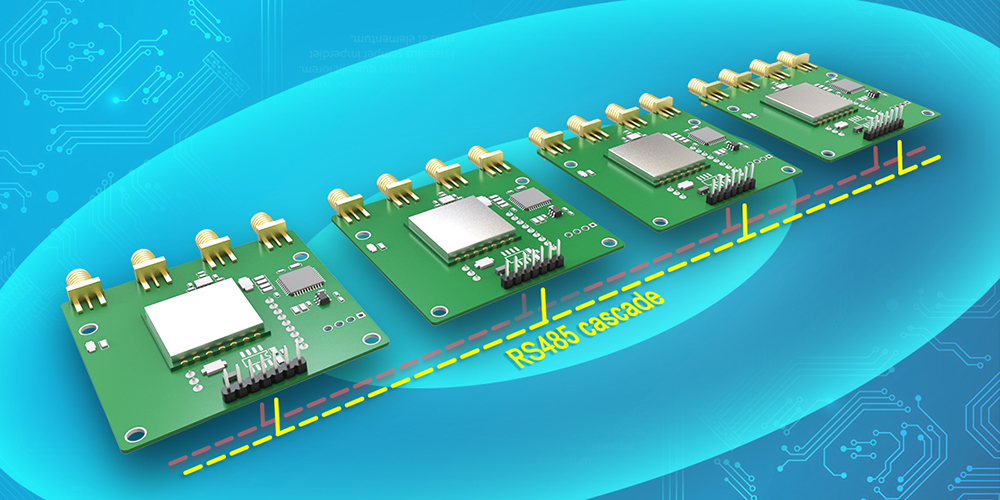

Support 485 address write, can be connected in series through RS485 cable, single bus large area read card, more suitable for new retail applications
Support a number of national and regional standards
Supporting countries and regions:US, Canada and other regions、Europe and other regions 、Mainland China、Japan、Korea、Malaysia、Taiwan

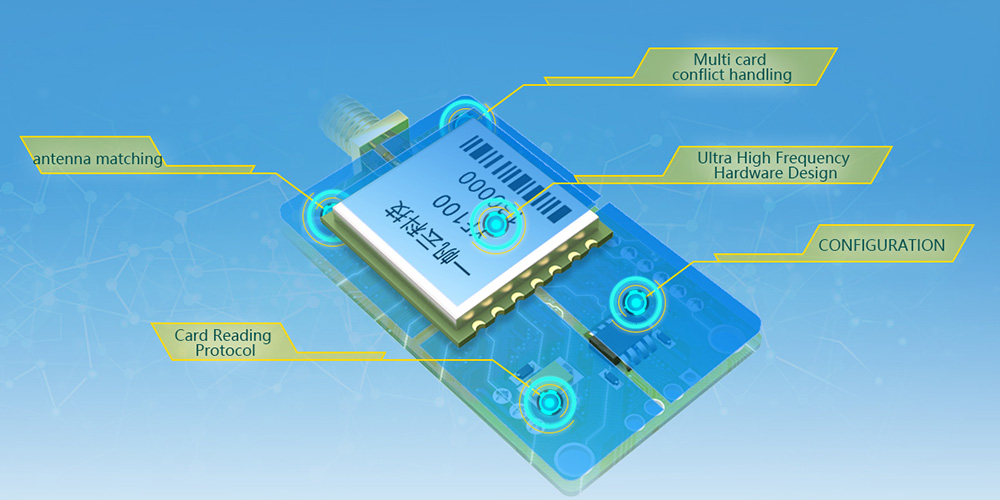

RFID module to promote the application of UHF technology
Packaging modules, overall simplified design
Extremely high cost performance, so that more fields can afford to use ultra-high frequency RFID
Hardware parameters
| Output Power | 15~26dBm |
| Supply voltage | Supply voltage |
| ANT Interface | U.FL |
| Data Interface | Data Interface |
| Reading Range | Reading Range |
| Power Consumption | 10m@8dbi antenna |
| Turn off current | <10uA |
| Operating Temp | -40℃ to +85℃ |
| Storage Temp | -40℃ to +105℃ |
| Size | 55×54mm |
| Channel | 4 |
