Product details

YF100 is a 915Mhz ultra-high frequency RFID module launched by Yifan Cloud Electronics, which is compatible with ISO18000-6C/EPC Gen2 protocol. Users only need TTL UART(3.3V) serial port to connect to it, which can realize the reading of ultra-high frequency labels. The product has 26dbm output. It can realize the reading range of up to 20 meters, which is an excellent choice for the development of short distance handheld phones, mobile phone accessories, desktop card issuers and other products.

Small size UHF RFID reader card module

Smaller than a dollar coin

Three-wire serial connection

It is connected to MCU through three serial cables TXD, RXD and GND, and it only takes one command to read the label

Compact peripheral circuit

Only 2 auxiliary devices, simple to the extreme!

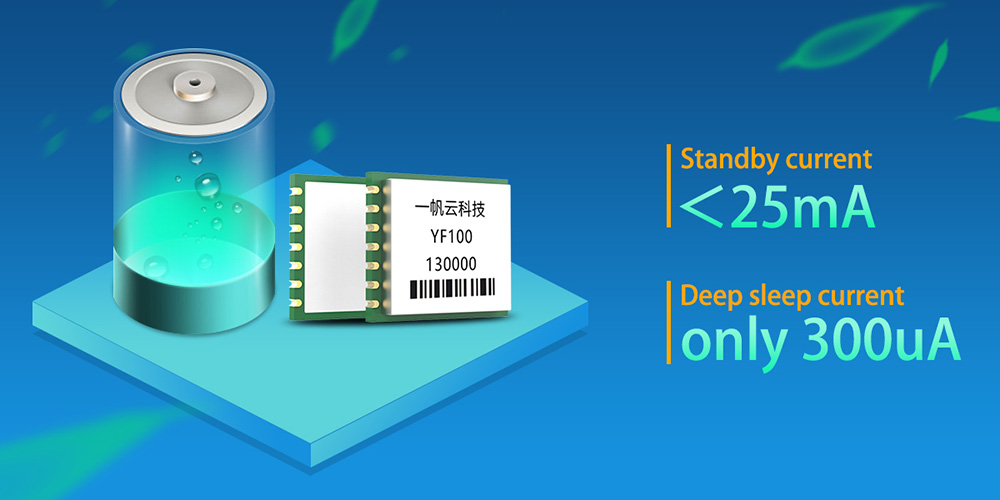

Low power consumption and high efficiency

Deep sleep current is only 300uA, standby current < 25mA, no additional radiator required

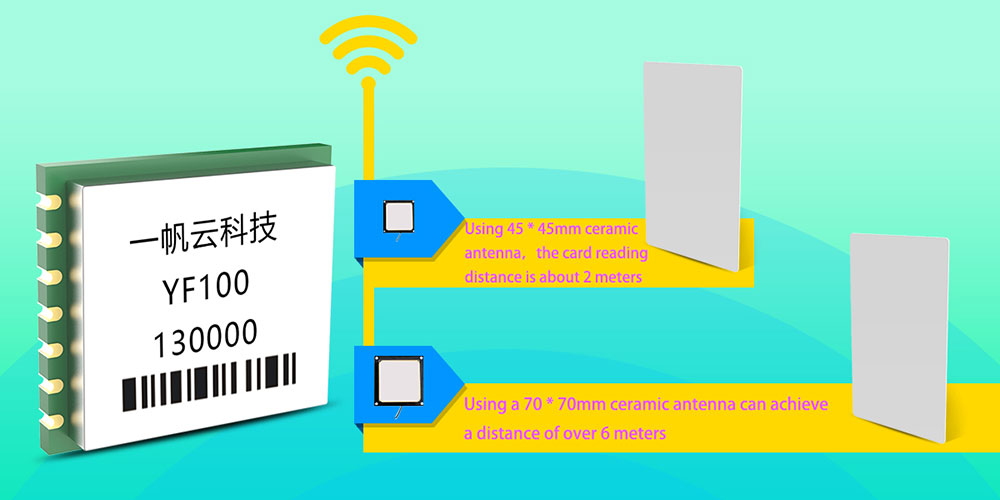

The card reading distance is far

Using 70*70mm double-fed ceramic antenna, in open conditions, read 9662 standard white card, the distance is more than 6 meters

The 45mm double-fed ceramic antenna is used to read the 9662 standard white card at a distance of about 2 meters under open conditions

Supports a variety of RFID card reading protocols

Support ISO18000-6C/EPC Gen2 and other protocols

Support a number of national and regional standards

Supporting countries and regions:US, Canada and other regions、Europe and other regions 、Mainland China、Japan、Korea、Malaysia、Taiwan

Ultra-high cost performance

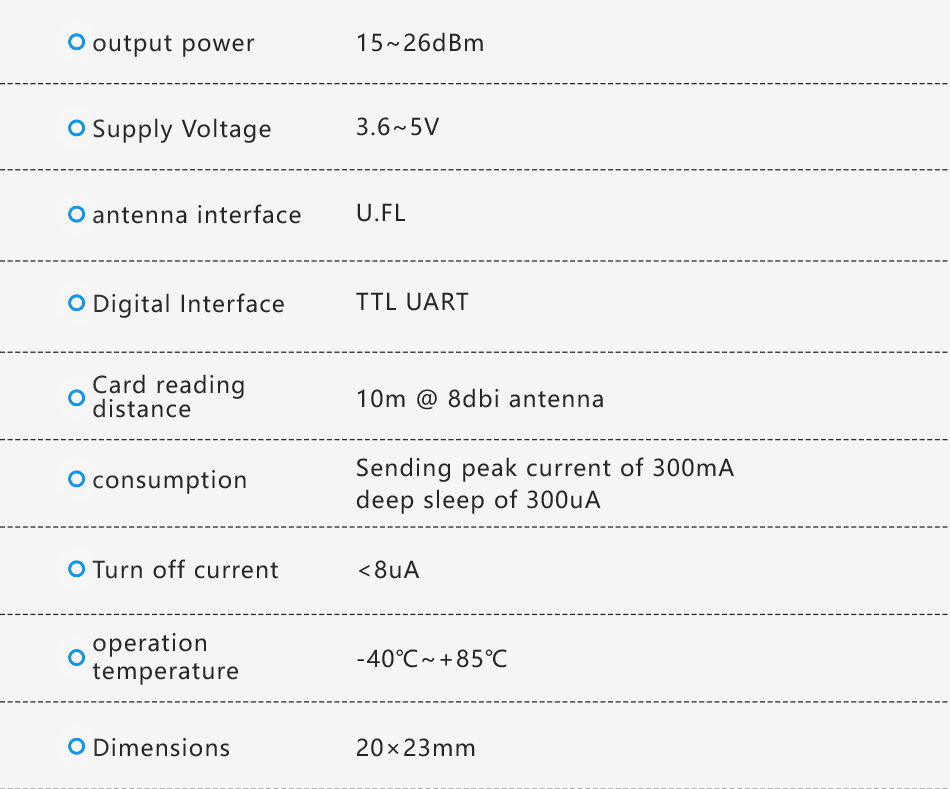

Hardware parameters
