Ultra-Wide-Band (UWB) is a wireless communication mode that uses non-sinusoidal narrow pulse of nanosecond level to transmit data. This technology adopts the way of high bandwidth and fast pulse and has excellent penetration. This product can be based on TOF ranging technology to achieve positioning function, in the laboratory environment, positioning accuracy up to 10cm high precision positioning, the system has the advantages of high precision, low power consumption, low cost, easy deployment, safe and reliable.

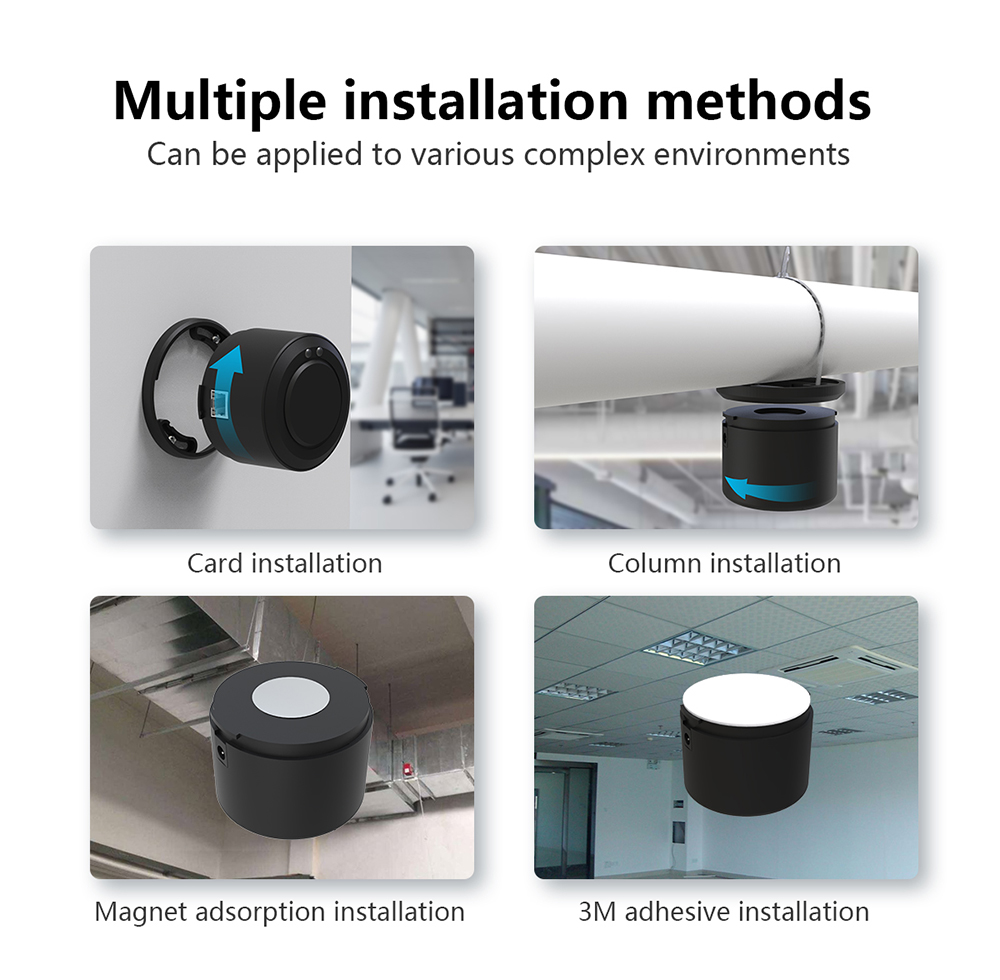

The UWB positioning system mainly consists of five parts: positioning label, positioning base station, UWB gateway, positioning engine and business software. WAT1001 is an indoor positioning base station developed based on UWB technology. The base station has the advantages of high precision, low power consumption, low cost, easy deployment, strong anti-interference ability, support a variety of installation methods, support cascade, can shorten the customer's installation time and reduce wiring difficulty, support MQTT3.1 protocol, facilitate secondary development and so on. WAT1001 is used to accurately locate objects and personnel in complex environments, meeting the requirements in one-dimensional, two-dimensional, and three-dimensional scenarios.

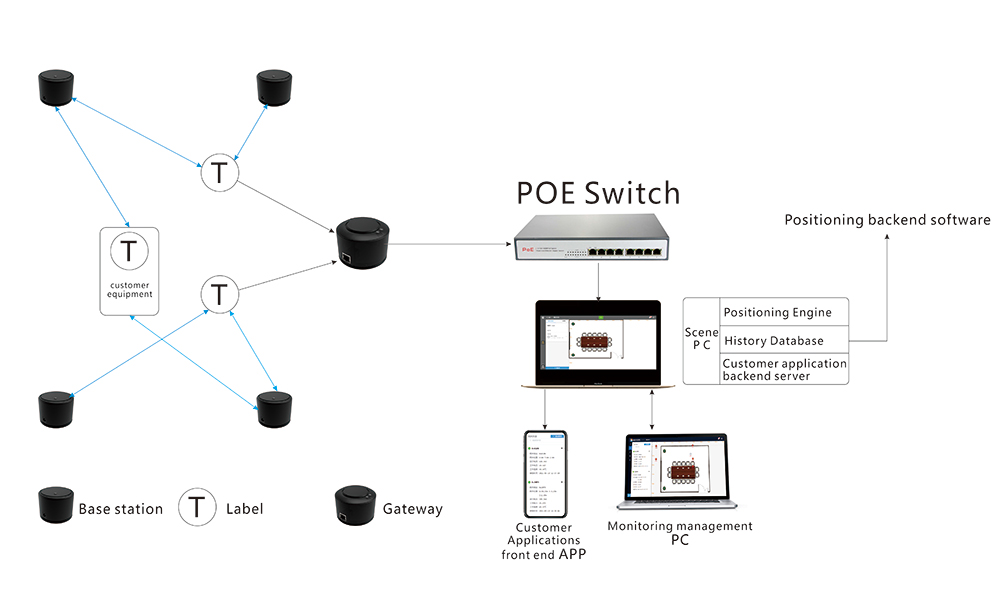

System topology

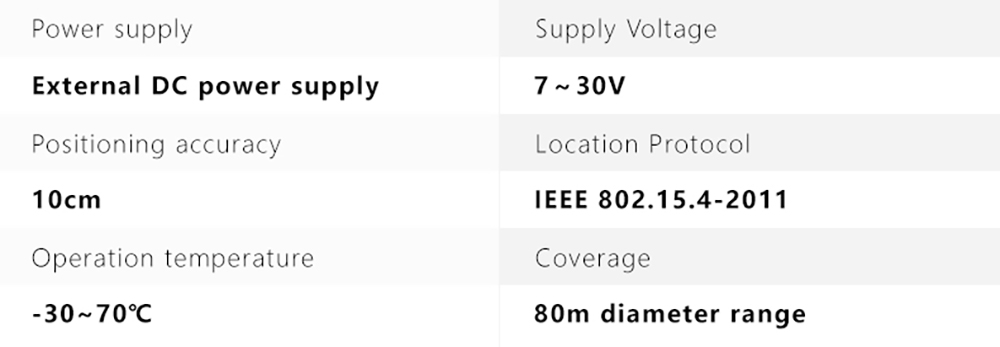

Basic parameter
|
