Product details

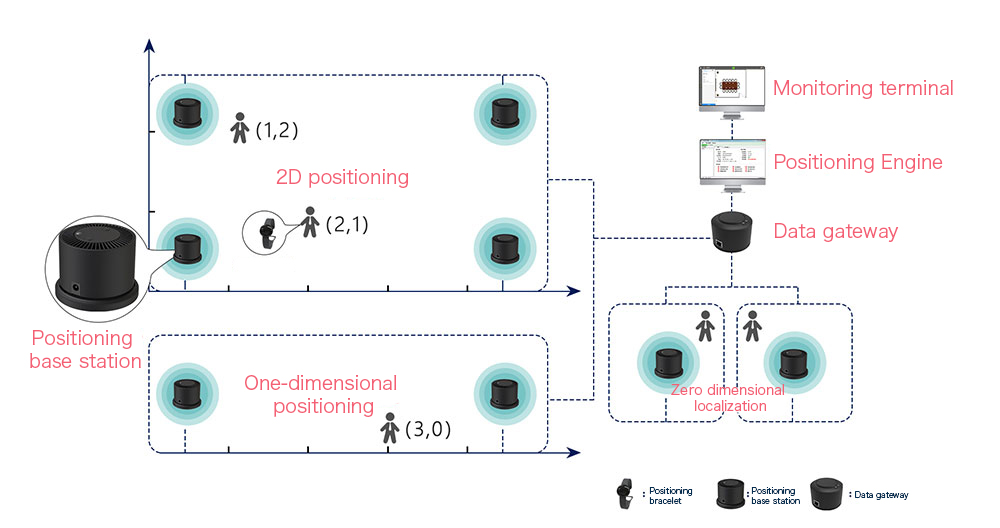

Guangzhou Yifan Cloud Technology launched UWB based solutions for power grid personnel safety positioning, nursing home personnel positioning, underground personnel positioning, tunnel personnel positioning, children's amusement park personnel positioning, hospital personnel positioning, scenic spot personnel positioning, realizing real-time personnel positioning; Electronic fence stay alarm, crossing alarm; Work attendance; Inspection and inspection; Inventory of materials; And other functions. The system topology is as follows:

Zero-dimensional positioning: a positioning base station can detect the label with induction, which can be used in closed rooms and pits. Xi 'an Samsung pool, Chengdu overhaul section, etc.

One-dimensional positioning: two positioning base stations can realize distance positioning of labels, which can be applied to tunnels, integrated pipeline corridors, corridors and park roads. Xiamen Pipe Corridor, Hengqin Pipe corridor, Xining Pipe Corridor, Zhengzhou subway, etc.

Two-dimensional positioning: Four positioning base stations coordinate the label, which can be applied to chemical plants, high-speed railway stations, substations, etc.

uwb positioning system architecture

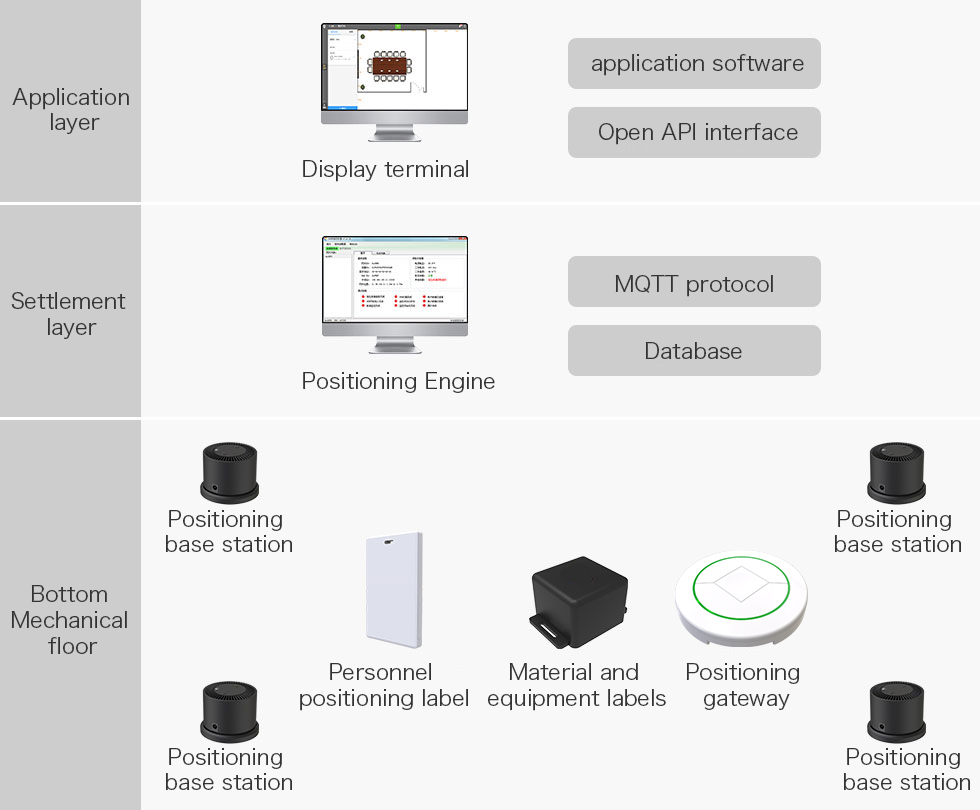

UWB positioning system architecture: as shown in the figure below, including UWB base station, UWB label, UWB gateway, UWB positioning engine algorithm, UWB positioning software, etc.

uwb positioning system components

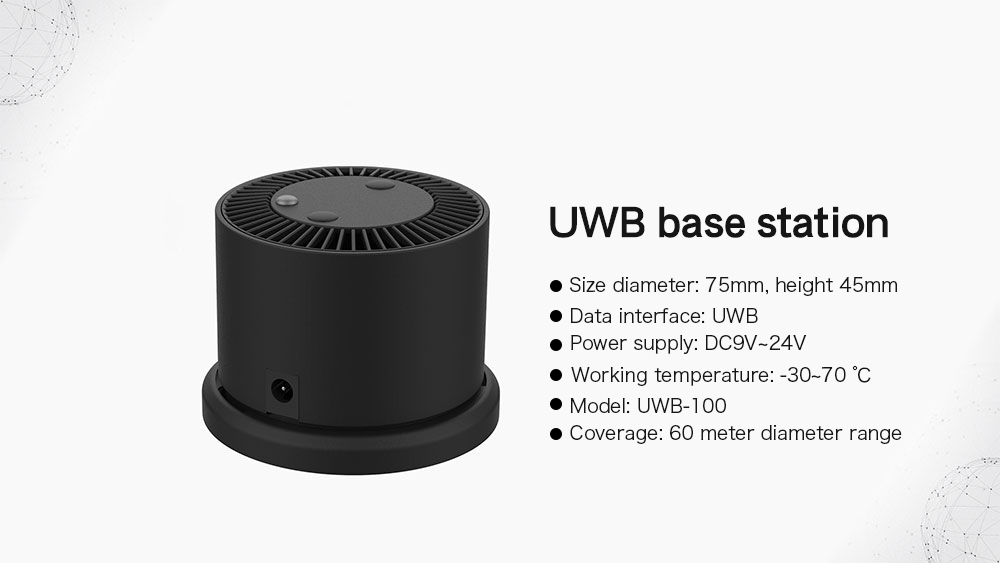

UWB locating base station

The indoor positioning base station is a part of the indoor positioning system. The positioning base station is distributed in the geometric edge of the scene area and covers the signal in the area. The main function of the indoor positioning base station is to detect the label data information and upload it to the server for summary analysis.

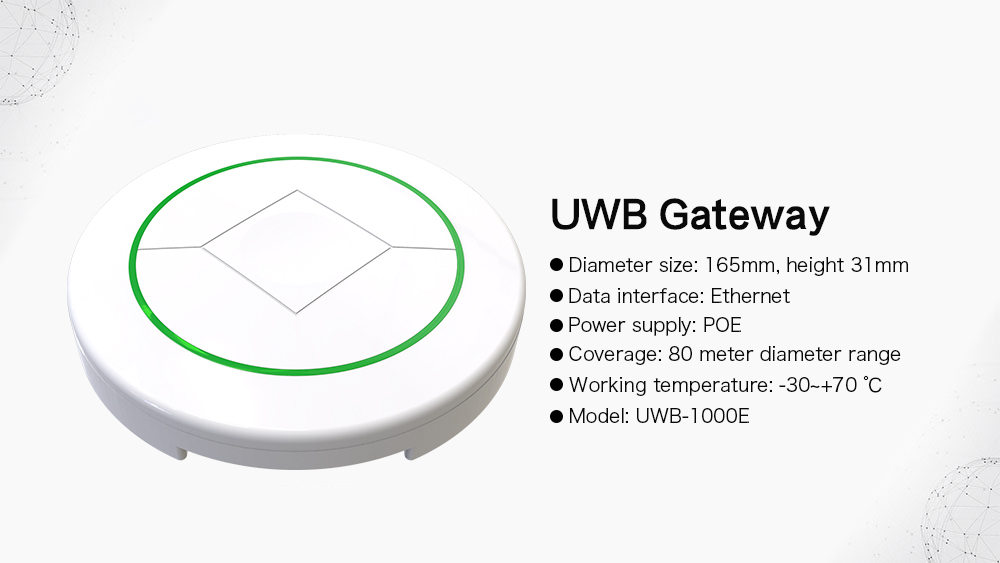

UWB Locates the gateway

Collect the coordinate information sent by the location tag and send the data to the location engine over Ethernet.

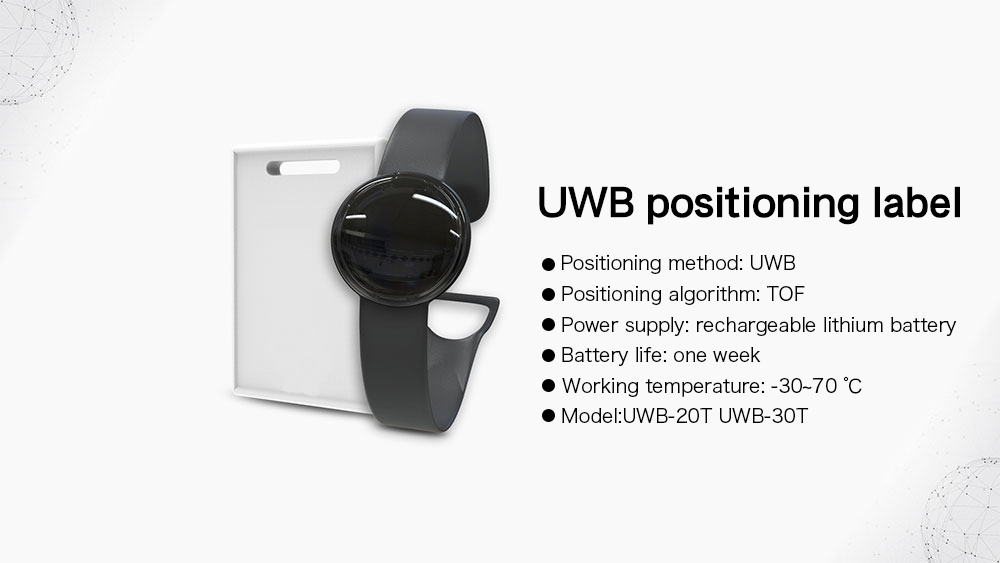

UWB Locating label

Locating labels are classified into personnel locating labels and asset locating labels. The Xiao network locating labels are worn or installed on the personnel or assets to be positioned. The tag transmits UWB signal and communicates with the base station to confirm the coordinate data so that the tag itself can be located.

Positioning engine

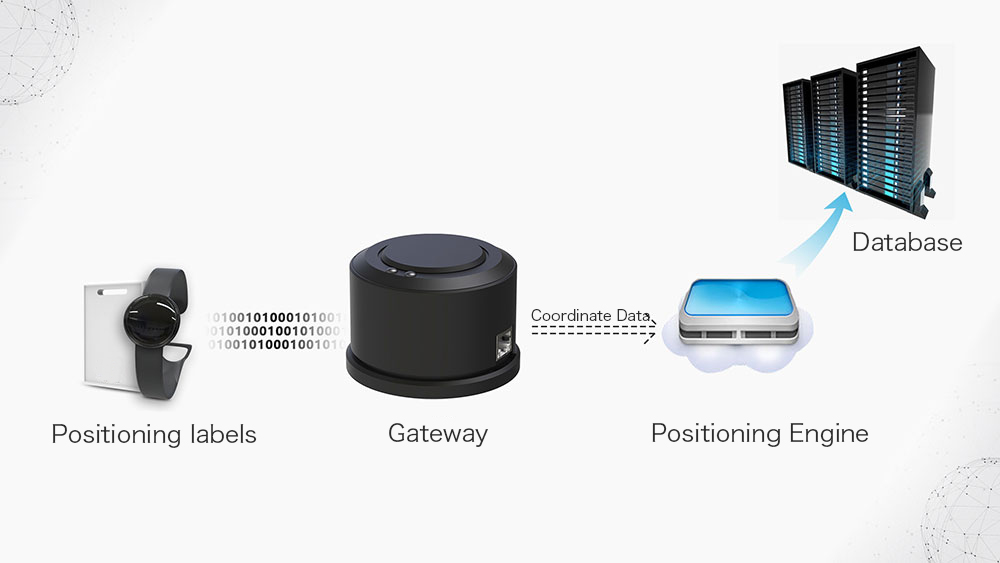

The location tag sends the original data to Xiao Net Data Gateway in real time, and the data gateway sends the collected data to the location engine (located on the local server or sent to the cloud through MQTT). The location engine runs the location algorithm and calculates the coordinates with location tags in real time.

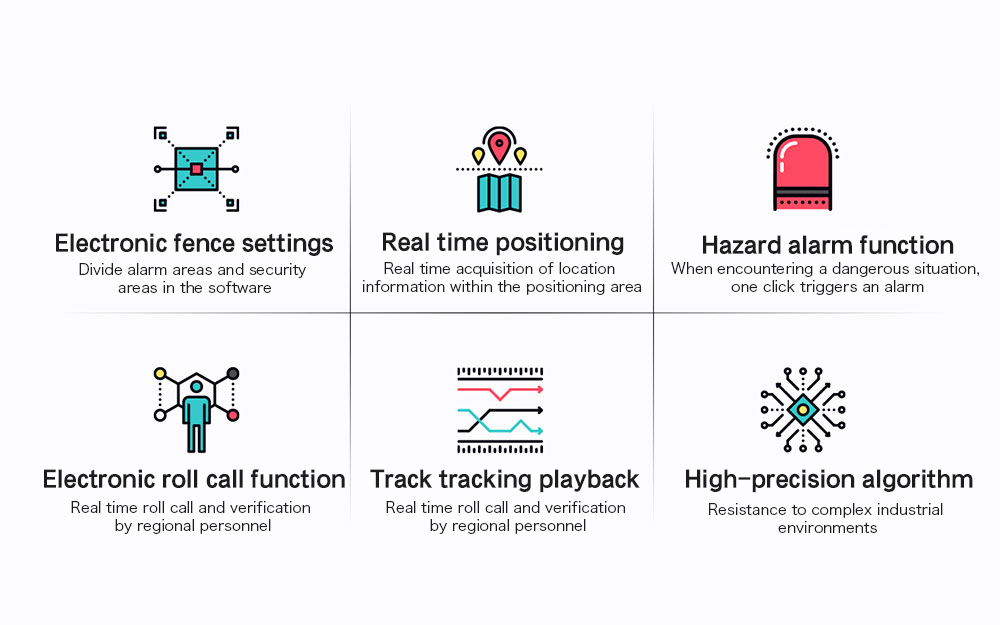

方案优势

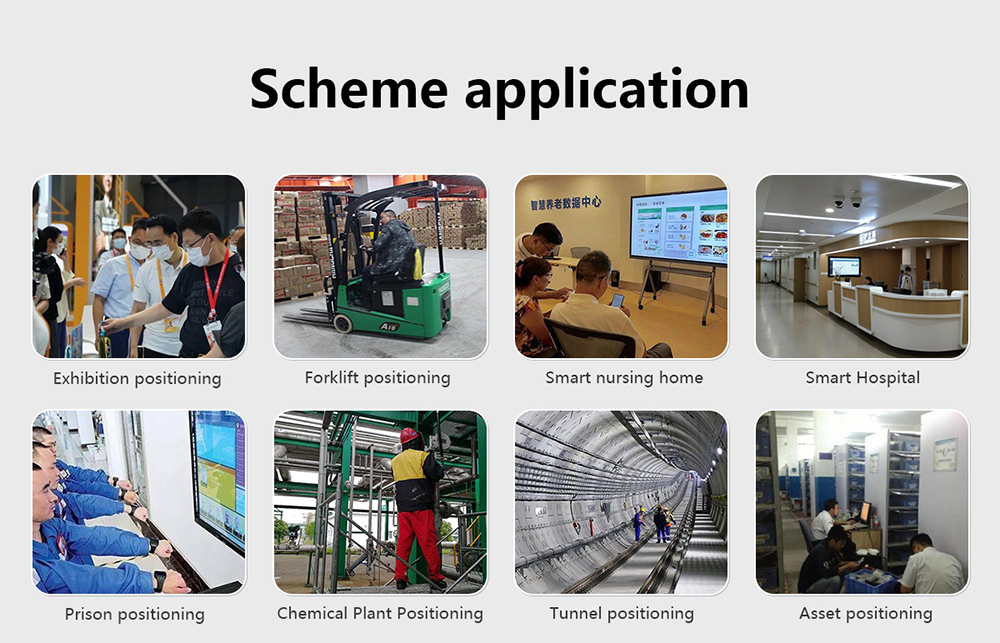

Application scenarios of the UWB positioning system

UWB positioning system can be used in prison personnel positioning, nursing home positioning, logistics warehousing industry, construction personnel positioning, 4S store passenger flow analysis, underground mine and tunnel personnel positioning, material positioning, power station, smart factory, petrochemical plant personnel positioning, etc.

This section describes the background management software of the UWB positioning system

Provide real-time display and other basic functions as well as a variety of expansion functions, users can choose to match the expansion function according to the actual needs.

Personnel real-time location

Real-time location information of personnel and items can be displayed on the background management interface. Click the pop-up to display details. One-click view online and offline personnel, items and power monitoring.

Location gateway remote monitoring

You can view the gateway status information in real time in the system to realize the remote monitoring of the gateway

Configure the UWB base station online

In the system, the base station location can be quickly configured, the label location information can be checked, the configuration command can be issued remotely, and the one-key configuration and one-key positioning can be realized without going to the site.

Electronic fence setup

Managers can customize and plan the electronic fence area in the system. When the personnel enter, leave or stay, the electronic fence alarm will be triggered.

Query of people's historical motion trajectory

In view of people's movement track, select the track of a day for query, respectively find out the real track path of that day, and can be played in fast forward.
