Remote UHF label reader module YF200

Product details

YF200 is a 900M ultra-high frequency module launched by Yifan Cloud Technology, compatible with ISO18000-6C/EPC Gen2 protocol. The power supply voltage is 3.3V-5.5V. The data communication interface is TTL UART(3.3V), and the communication rate is 57600bps.

When the module transmits 20dBm power, the peak power consumption is 200mA, and the average power consumption is determined by the parameters such as the video disk memory speed. RFF200 module is suitable for short distance handheld phone, mobile phone accessories, desktop card issuers, etc.


Small size UHF RFID reader card module

Smaller than a dollar coin




Three-wire serial connection

It is connected to MCU through three serial cables TXD, RXD and GND, and it only takes one command to read the label




Compact peripheral circuit

Only 2 auxiliary devices, simple to the extreme!




Low power consumption and high efficiency

Deep sleep current is only 100uA, standby current < 10mA, no additional radiator required




The card reading distance is far

The 70*70mm doubly-fed ceramic antenna is used to read the 9662 standard white card at a distance of more than 150cm under open conditions

The 45*45mm double-fed ceramic antenna is used to read the 9662 standard white card at a distance of about 50cm under open conditions




Supports a variety of RFID card reading protocols

Support ISO18000-6C/EPC Gen2 and other protocols




Support a number of national and regional standards

Supporting countries and regions:US, Canada and other regions、Europe and other regions 、Mainland China、Japan、Korea、Malaysia、Taiwan




Ultra-high cost performance

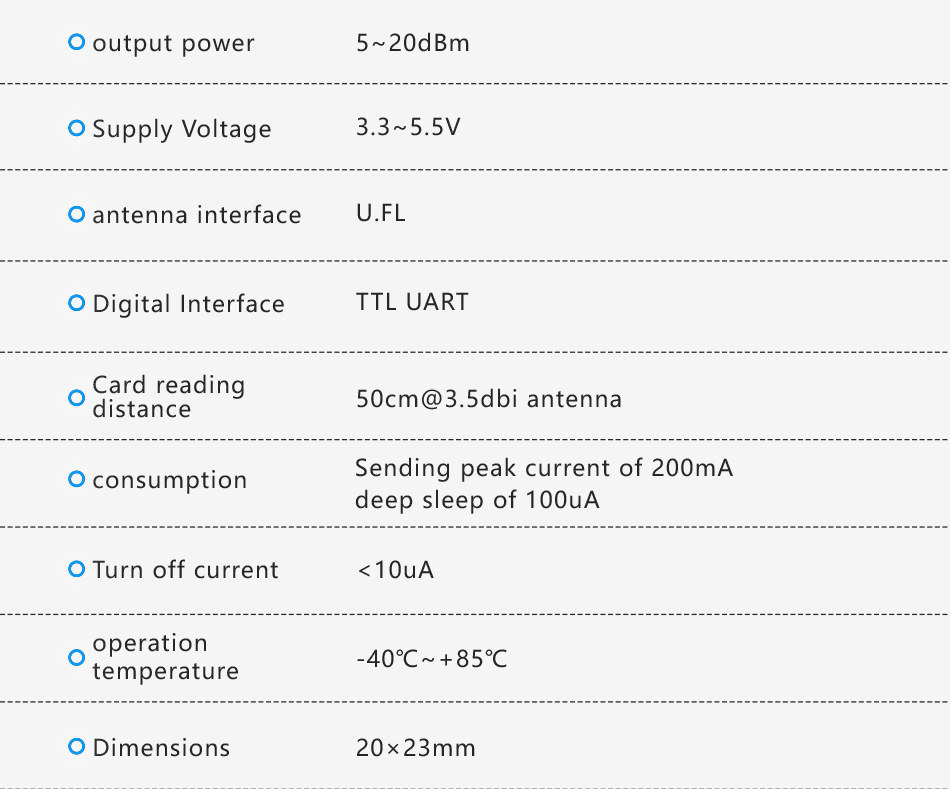

Hardware parameters




Yifan Cloud Technology Professional IoT Basic Platform Supplier


Guangzhou Yifanyun Technology Co., Ltd. (hereinafter referred to as Yifanyun Technology), located in Tuspark, Panyu, Guangzhou, is a high-tech enterprise integrating R&D, sales and scheme design.

The IoT basic platform created by Yifan Cloud Technology connects the IoT transmission layer, enabling data exchange between protocol interfaces such as ZigBee, Wi Fi, Ethernet, 2G/3G/4G, TTL, RS232, RS485, USB, etc. It can collect, transmit, and monitor various wireless data, and is widely used in fields such as intelligent lighting (including road lighting, commercial lighting, agricultural lighting), factory automation data collection, temperature and humidity monitoring, RFID personnel and material positioning. In the context of the national strategy of intelligent manufacturing, our goal is to improve production management efficiency and help customers achieve technological leaps by injecting IoT technology into their enterprises.



Manual download

Software download
