YF100CA is a UHF RFID antenna integrated reader module launched by Yifan Cloud Technology. The overall volume of ceramic antenna integrated with 915Mhz reader module is reduced by 60%. At the same time, the product uses the industry general FPC connector, can be conveniently installed in the size limited UHF handheld machine, card reader, the same performance, smaller size, open the possibility of more applications, is the new retail intelligent storage and intelligent sales container and other solutions excellent choice.

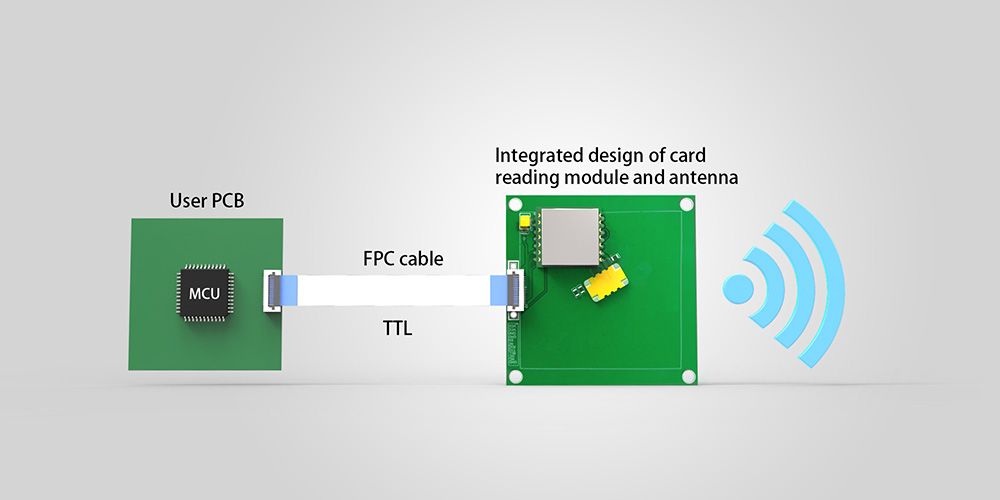

Integrated design of reading card module and antenna
Connect MCU through flexible FPC, read and write label data using TTL serial port, and use it directly without UHF knowledge

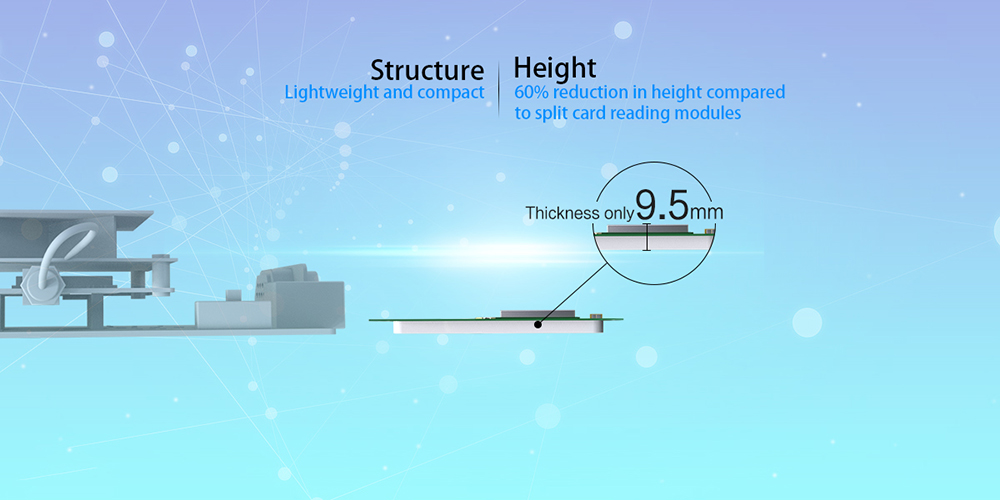

Thin and compact structure
Compared with the external antenna fixed by a single module and nylon column, the integrated antenna greatly reduces the overall height and is more suitable for handheld use
Low power consumption and high efficiency
Sleeping power consumption 1uA, no additional radiator, 120ms wake up time

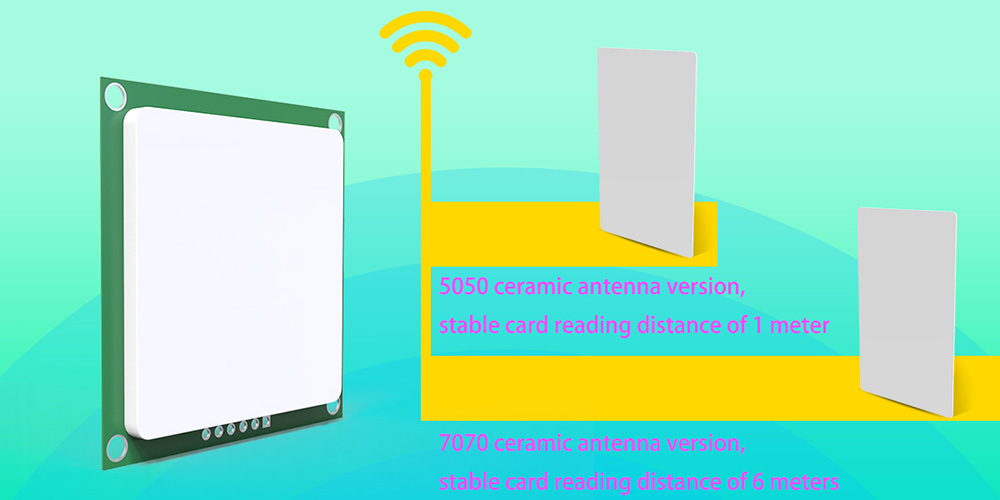

The card reading distance is far
5050 ceramic antenna version, stable reading card distance 3 meters; 7070 ceramic antenna version, stable reading card distance of 6 meters;
Structural treatment of heat dissipation
Large area of antenna bottom plate is covered with copper heat conduction, continuous inventory temperature rise is less than 10 degrees, support long-term continuous full load work at room temperature
Supports a variety of RFID card reading protocols
Support ISO18000-6C/EPC Gen2 and other protocols
Support a number of national and regional standards
Support countries and regions: US, Canada and other regions, Europe and other regions, Mainland China, Japan, Korea, Malaysia, Taiwan
Features:
Card reading distance | 5050 ceramic antenna version, stable card reading distance of 3 meters 7070 ceramic antenna version, stable card reading distance of 3 meters |
consumption | Sleep power consumption，1ua |
Wake-up time | 120ms |
operation temperature | Wide temperature design with extremely low temperature drift coefficient |
peripheral circuit | No peripheral circuit, directly connected |
technology | A classic example of consistent design, all using the highest level components to ensure stable and consistent parameters |
Depending on the size of the gain, the series includes RF100CA-50 by 50mm and RF100CA-70 by 70mm.

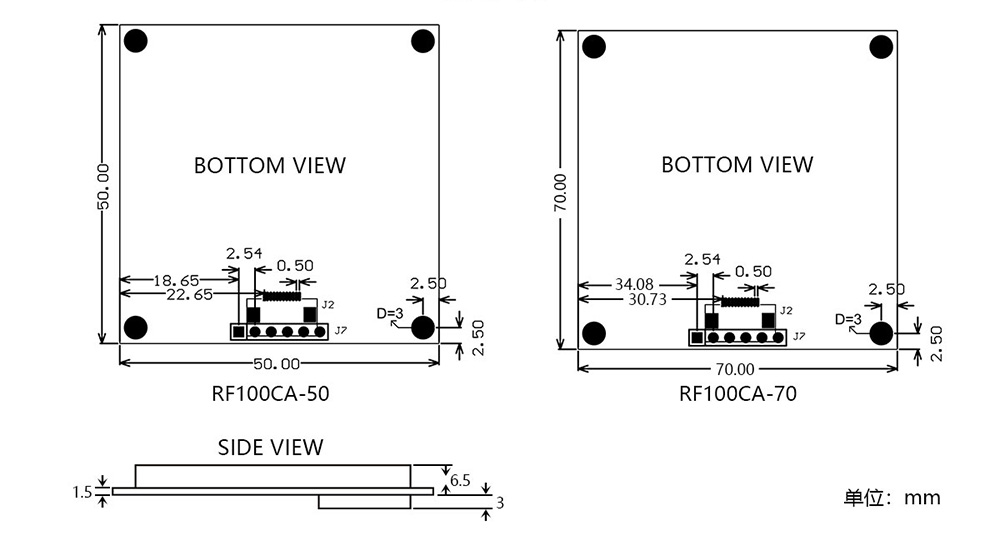

Structural dimension:
Pin definition:
 | ||
| PIN | Definition | Description |
| 1 | 5V | Power supply |
| 2 | 5V | |
| 3 | GND | Ground |
| 4 | GND | |
| 5 | EN | Enable pin |
| 6 | NC | Keep the pins and handle them in the air |
| 7 | RXD | TTL receive |
| 8 | TXD | TTL send |
| 9 | BELL_EN | The buzzer was enabled |
| 10 | NC | Keep the pins and handle them in the air |
| 11 | NC | Keep the pins and handle them in the air |
| 12 | GND | Ground |
|
