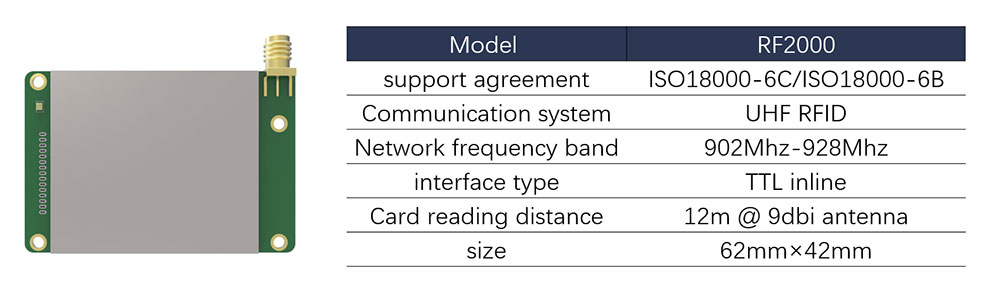

YF2000 is a 915Mhz ultra-high frequency RFID module launched by Yifan Cloud Technology, compatible with ISO18000-6C/ISO18000-6B protocol, simple command operation, can realize the reading of ultra-high frequency label, the product has 26dbm output, can realize the reading range of 20 meters, is a short distance handheld machine. Mobile phone accessories, desktop card issuers and other product development excellent choice.

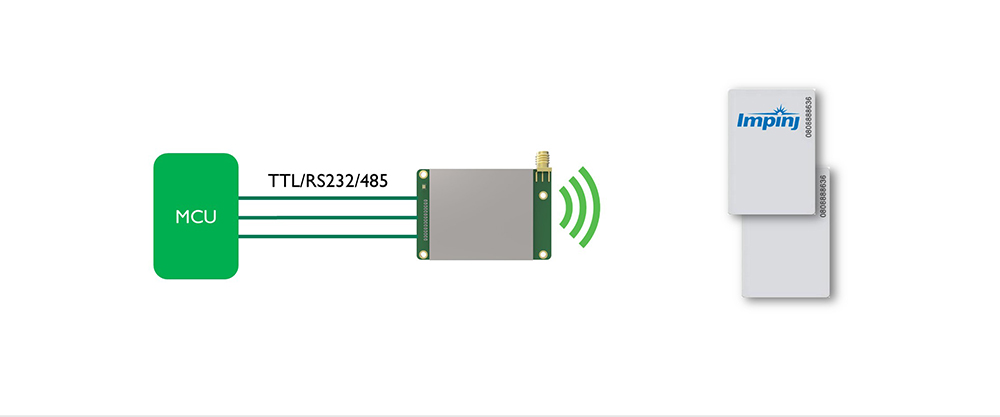

The serial port is connected with three wires, making reading and writing easy
It can be connected to MCU through three serial cables TXD, RXD and GND

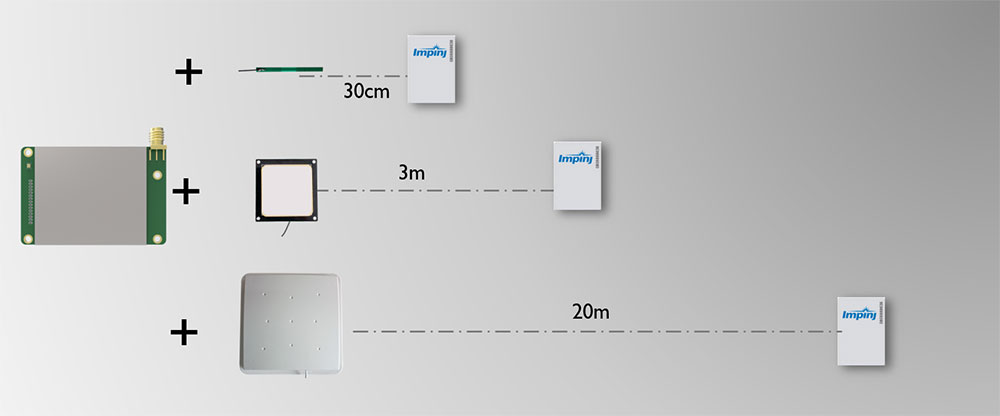

Large gain read card distance
Small ceramic antenna stable recognition distance of 2-3 meters
Large circularly polarized plate antenna > 20 m

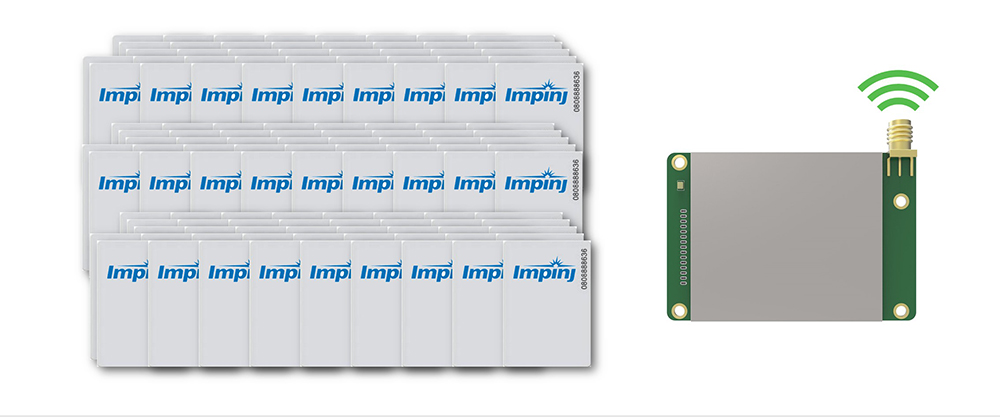

High performance chip fast card reading
700 sheets per second, 1000 tabs in the tag cache @96bit EPC
Easy application development
Support to provide Windows software development application routines and source code, with detailed parsing documentation

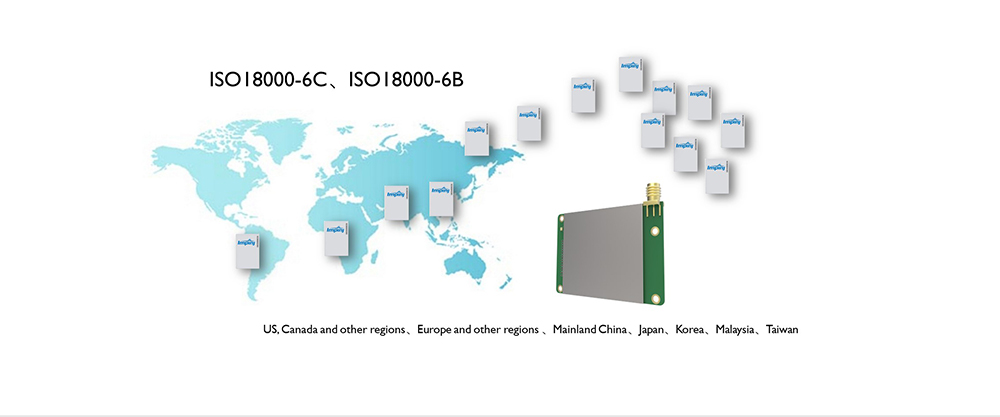

Supports a variety of RFID protocols
Supports various protocols such as ISO18000-6C and ISO18000-6B
Support countries and regions: US, Canada and other regions, Europe and other regions, Mainland China, Japan, Korea, Malaysia, Taiwan
|
