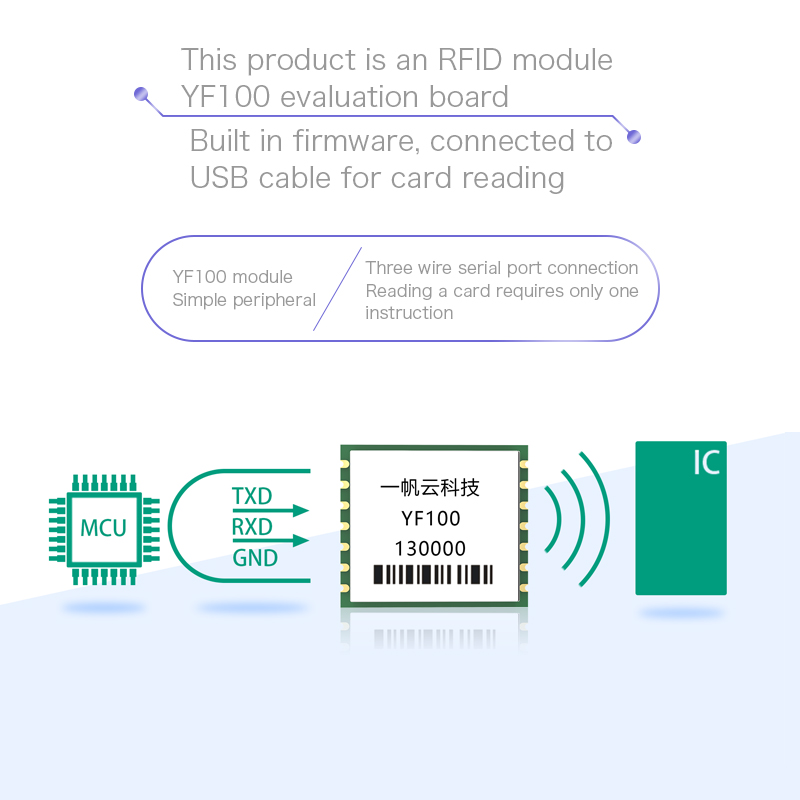

YF100 module evaluation board is a test development evaluation board for YF100 series 915MHz UHF ultra-high frequency RFID reader module produced by Guangzhou Yifan Cloud Technology. It has a maximum output power of 26dBm, a reading distance of 10m (@12dbi antenna), and a working frequency band of 840MHz~928Mhz. Supporting protocols include: ISO18000-6C/EPC Gen2. Supported regions include China region, Europe Region, America region, Korea region, etc.
Guangzhou Yifan Cloud Technology provides users of YF100 module evaluation board with complete PC development examples, as well as communication instruction manuals and examples, circuit design application examples, PCB layout application examples, etc., which is convenient for users to quickly evaluate the feasibility of the scheme and design application products, and shorten the development time.
In order to facilitate customers to evaluate the functions of RFID module: read and write card control, read card distance, buzzer, etc., we have launched RF100 series evaluation board.
|
