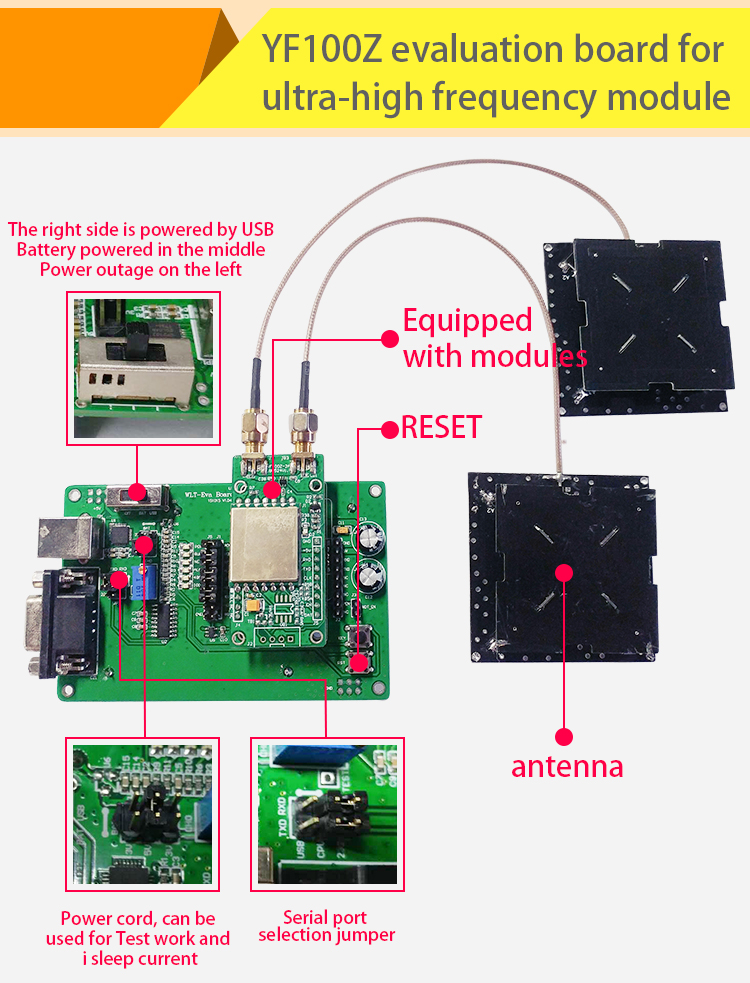

RFID EVA-YF100Z is a test, development and evaluation kit of ultra-high frequency module YF100Z module, which can be equipped with our YF100Z, YF100Z-2A, YF100Z-4A modules.
This evaluation kit supports TTL/RS485/RS232 serial communication, the RF reader card supports ISO18000-6C protocol, simple instructions can realize the reading of ultrahigh frequency labels, the product has 26dbm output, can realize the reading range of up to 10 meters, complete PC side development case, and communication instruction manual and examples. Circuit design application examples, convenient for users to quickly evaluate the feasibility of the scheme and design application products, shorten the development time.
Evaluation and selection table
| Model number | Description | Carrying module diagram |
| RFID EVA-YF100Z | Single channel module YF100Z Evaluation Board |
|
| RFID EVA-YF100Z-2A | Dual channel module YF100Z-2A Evaluation board |  |
| RFID EVA-YF100Z-4A | Four channel module YF100Z-4A Evaluation board |  |
| RFID EVA-YF100Z-8A | Eight-channel Module YF100Z Evaluation Board-8A |  |
|
