YF830 module is the WLT series ZigBee data transmission module produced by Guangzhou Yifan Cloud Technology Co., LTD. It adopts patch package and smaller size. It has a maximum output power of 10dBm, visual transmission distance up to 500 meters (@5dbi antenna), working frequency band 2.400GHz~2.520Ghz, in addition to standard ZigBee 16 channels, there are 9 extended frequency bands, can effectively avoid WIFI, Bluetooth and other 2.4G signal interference. Maximum wireless communication rate is 2Mbps and maximum serial baud rate is 1.5Mbps.
Guangzhou Yifan Cloud Technology Co., Ltd. provides mesh peer-to-peer wireless routing protocol for YF830 users. There is no networking delay and the principle of time-space weight balance is adopted. The routing time is short and the communication is stable and reliable.

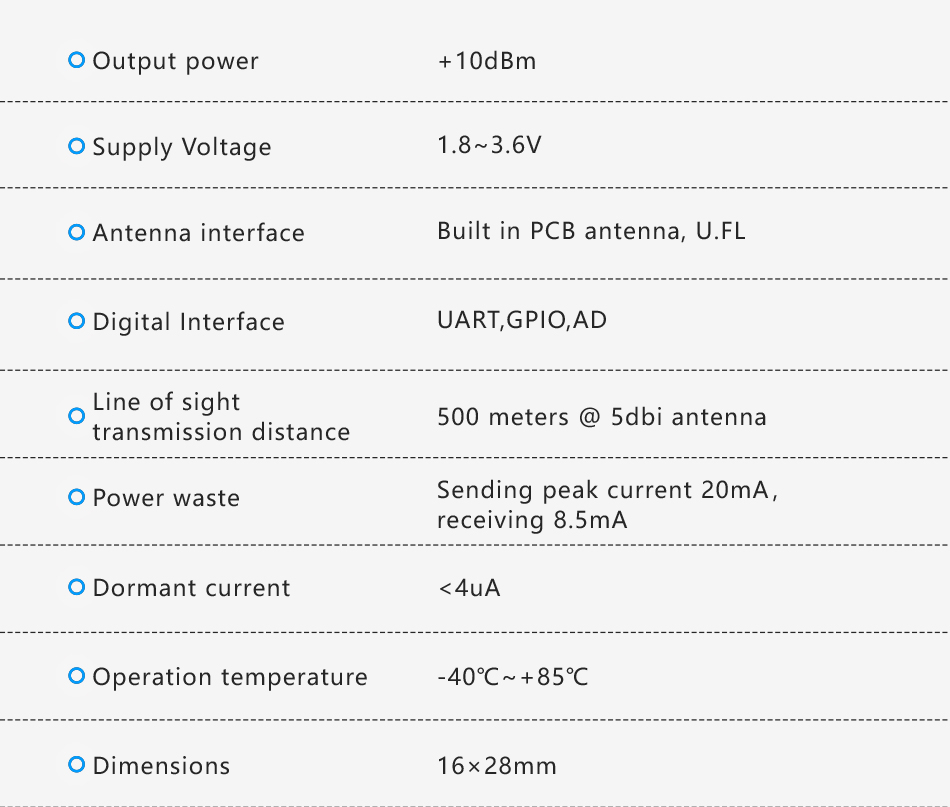

Technical parameter
Industrial level data security guarantee

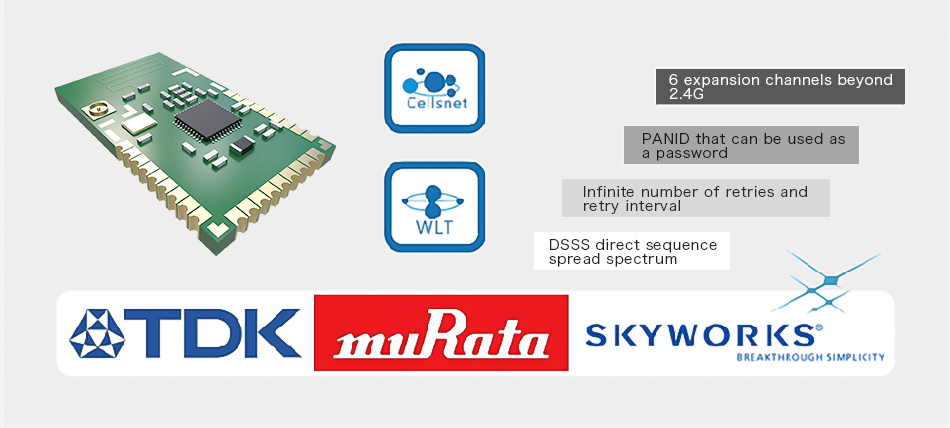

Industrial grade stability module: front-line brand devices Dual protocol support, quadruple security guarantee
Embedded ZigBee transparent protocol

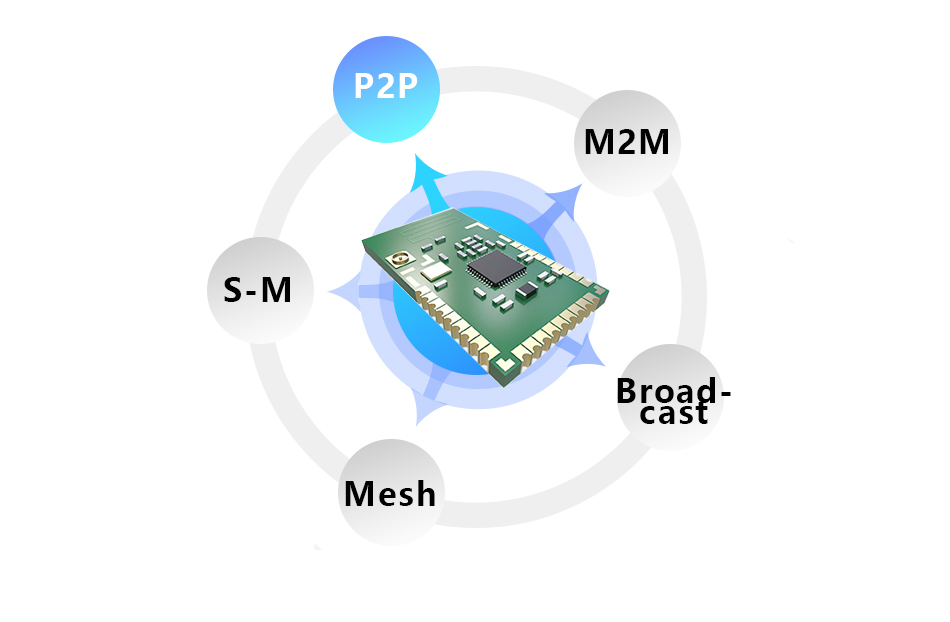

Supports various network structures, supports peer-to-peer P2P, and multi-point to multi-point M2M Broadcast, master-slave S-M, roleless mesh and other topological structures

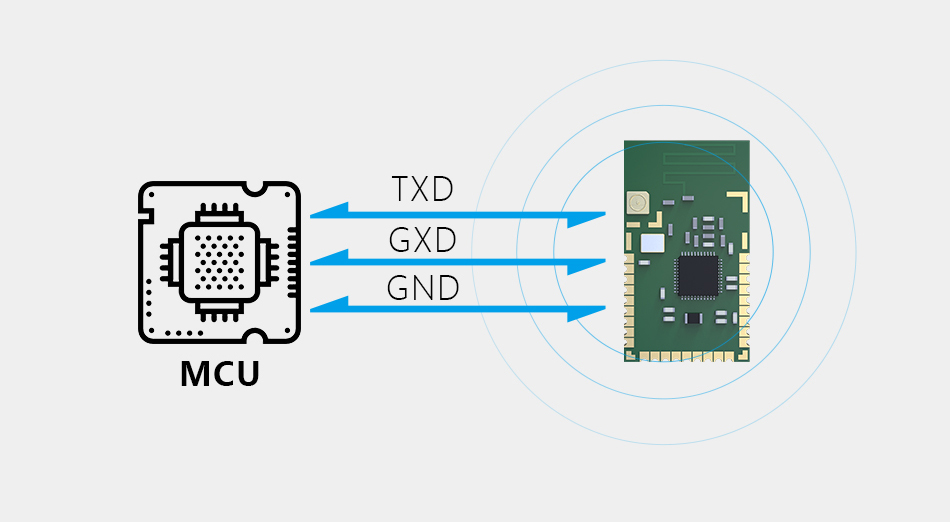

Serial three-wire connection, simple application
(TTL/RS232/RS485) Serial port three wire connection Transparent transmission for fast circuit design

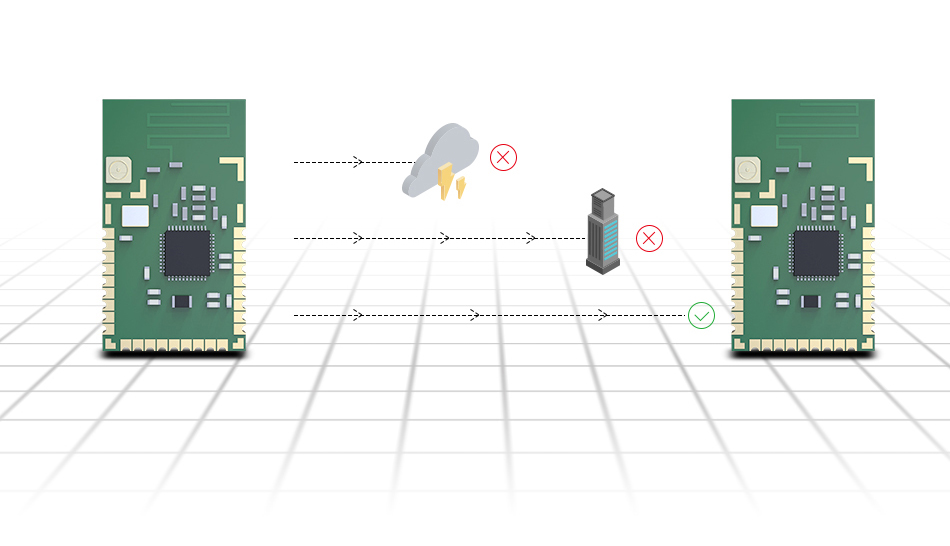

Automatic retry mechanism
When the data fails to be sent due to external interferencethe device will automatically resend it according to the settings
Telecommunication
The maximum output power is+20dBm, combined with @ 5dbi antenna Line of sight transmission distance 2500 meters

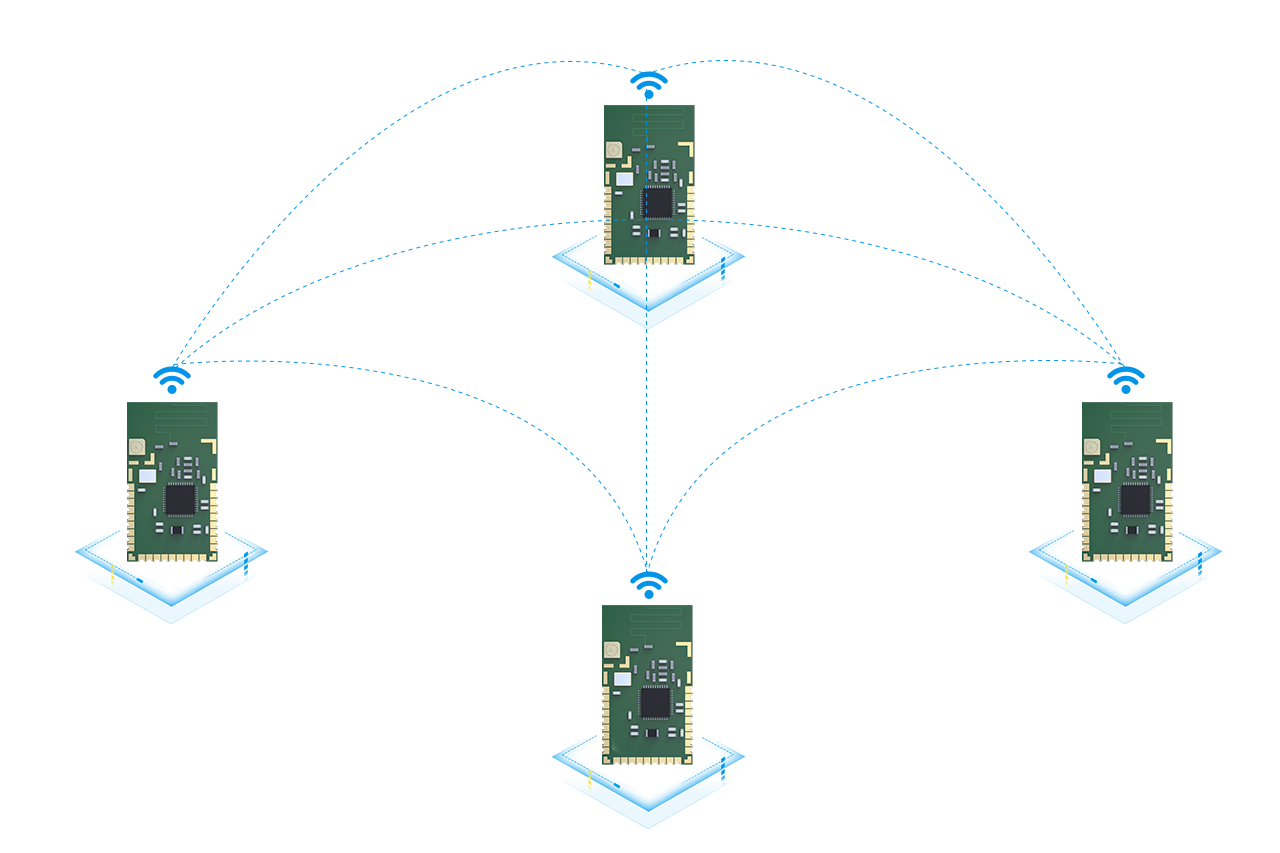

Powerful Mesh networking capabilities
The YF830 series high-performance ZigBee module has strong networking capabilities and can automatically form a Mesh network with one click, without networking delay. It adopts the principle of time space weight balance, with short routing time and stable and reliable communication

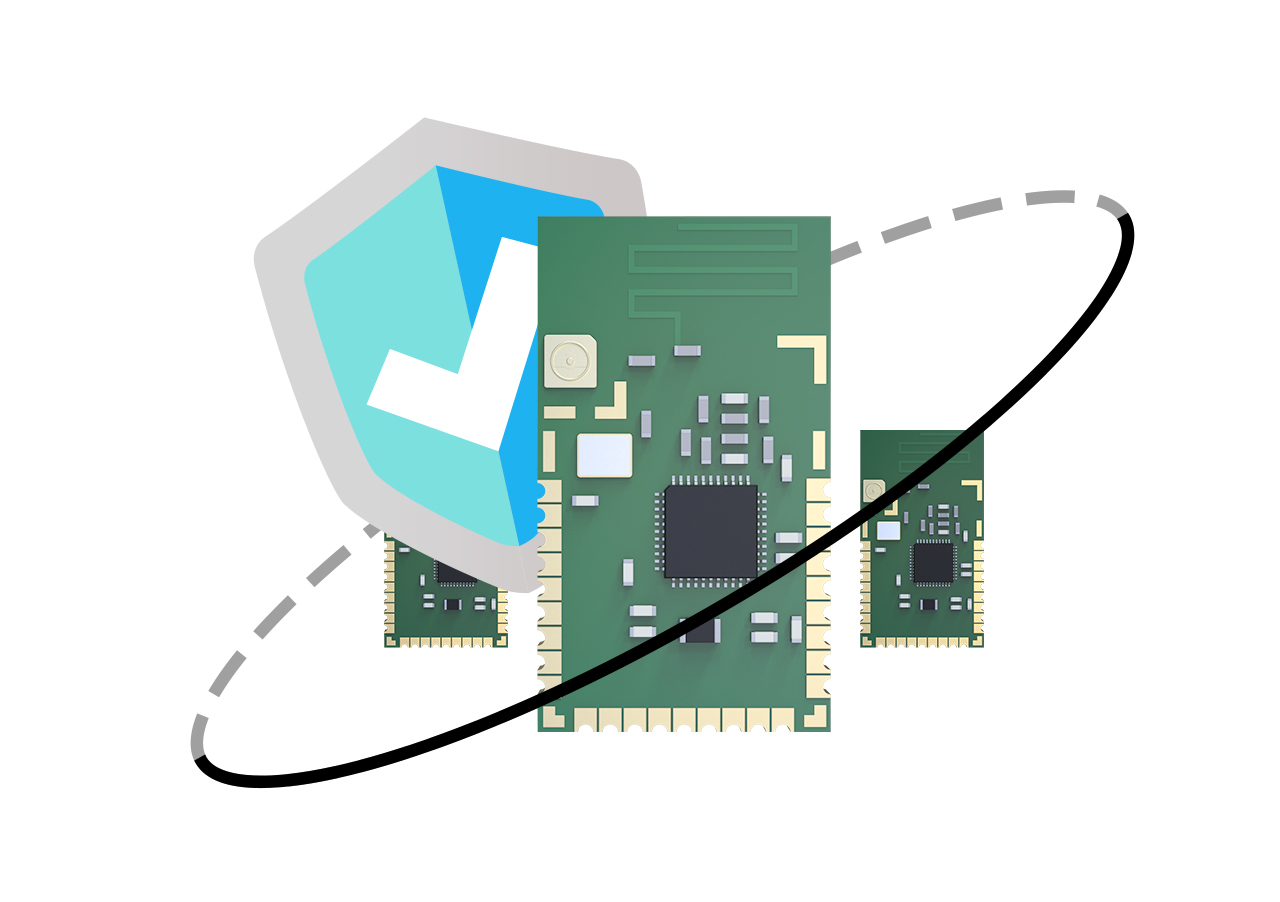

Data encryption to ensure transmission security
This module supports device login encryption. To modify the configuration, a password is required. Even if illegal devices are used to capture packets from the air, data cannot be obtained, ensuring data transmission security
Yifan Cloud Technology Professional IoT Basic Platform Supplier
Guangzhou Yifanyun Technology Co., Ltd. (hereinafter referred to as Yifanyun Technology), located in Tuspark, Panyu, Guangzhou, is a high-tech enterprise integrating R&D, sales and scheme design.
The IoT basic platform created by Yifan Cloud Technology connects the IoT transmission layer, enabling data exchange between protocol interfaces such as ZigBee, Wi Fi, Ethernet, 2G/3G/4G, TTL, RS232, RS485, USB, etc. It can collect, transmit, and monitor various wireless data, and is widely used in fields such as intelligent lighting (including road lighting, commercial lighting, agricultural lighting), factory automation data collection, temperature and humidity monitoring, RFID personnel and material positioning. In the context of the national strategy of intelligent manufacturing, our goal is to improve production management efficiency and help customers achieve technological leaps by injecting IoT technology into their enterprises.
|
