The management of production process and operation personnel in traditional manufacturing factories relies on tabular data, and the visualization degree is not high, so there are problems such as insufficient production efficiency and more safety risks in production.

Combining the latest positioning technology of the Internet of Things, Yifan Cloud Technology has launched the personnel positioning management system based on UWB technology, which combines real-time positioning with traditional supervision methods to make the monitoring of inspection personnel in the factory more intelligent, greatly reducing the probability of production accidents and improving production efficiency.

The factory personnel positioning management system based on UWB technology combines the real-time positioning of people, vehicles and objects with the original supervision method, making the monitoring of factory workers more intelligent and convenient, greatly reducing the probability of production accidents and improving the production efficiency of the factory.

Solution architecture

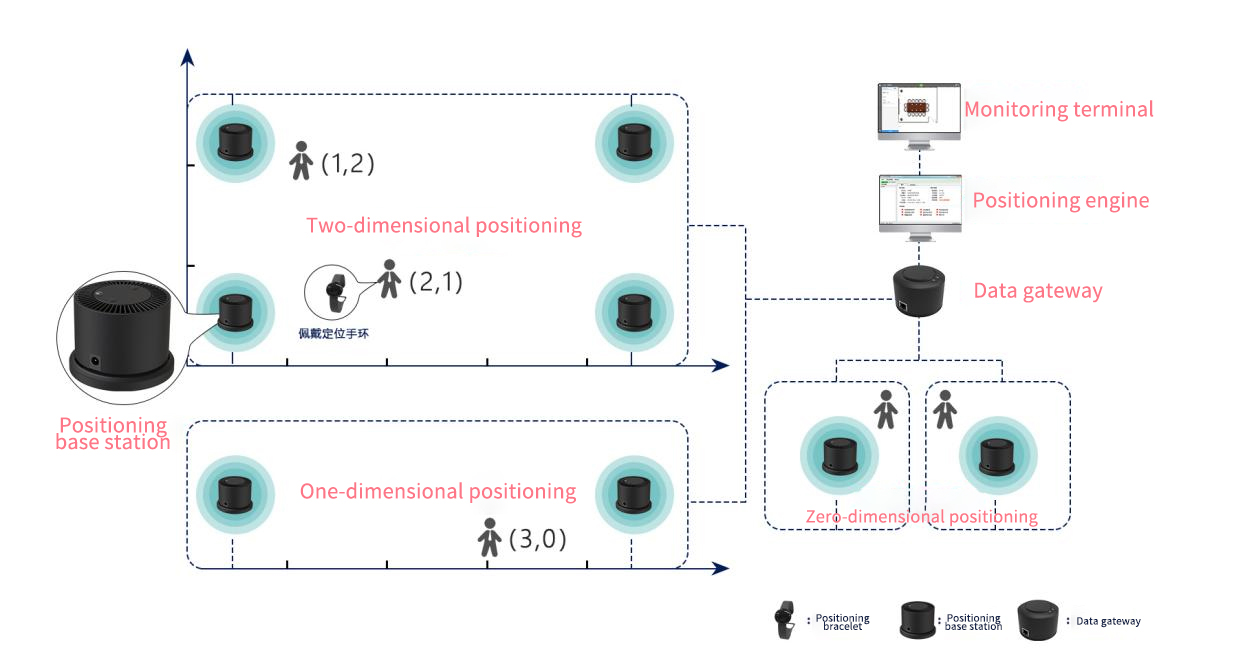

UWB high-precision positioning system is mainly composed of hardware (base station, label), positioning engine software, and management platform. The system architecture is shown as follows:

Scheme description

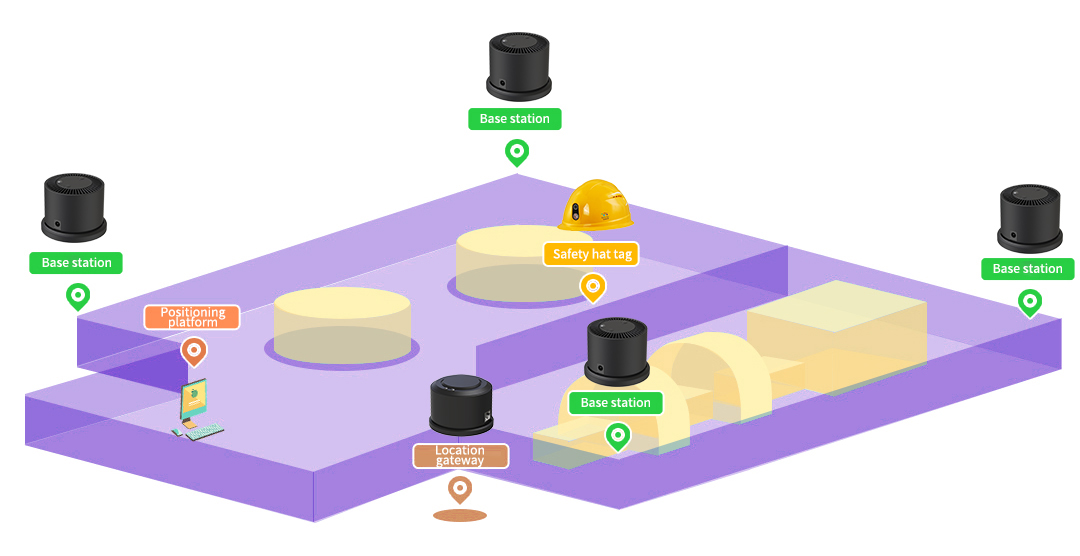

By setting up a certain number of positioning base stations in the factory, the intelligent factory personnel location solution continuously collects the spatio-temporal coordinate data of various elements returned by positioning tags on personnel, vehicles, assets and tools, and then locates the location information in real time and displays it in the factory control center with zero delay. To achieve manufacturing resources tracking, production process monitoring, and based on location data analysis and decision.

JPG, PNG and other formats are supported.

Map zoom, drag function;

Auxiliary measuring tools;

Positioning personnel, materials, vehicle location real-time display, realize the tracking of manufacturing resources;

Electronic fence and alarm management

Enter and leave the fence area alarm;

Arbitrary setting of fence shape color;

Historical track storage and playback

Track playback: The person/vehicle movement track can be played back according to the label or area within the specified time period.

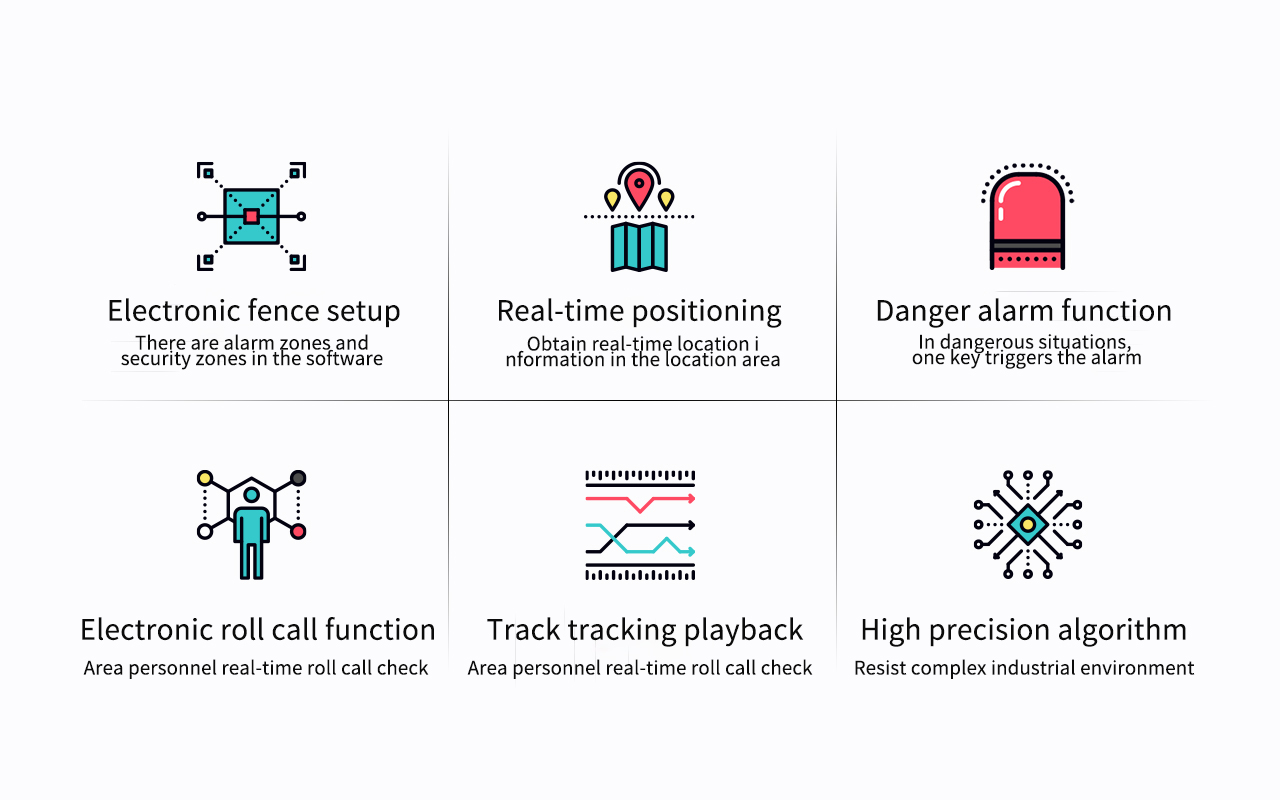

Scheme advantage

Application scenario

UWB positioning system can be used in prison personnel positioning, nursing home positioning, logistics warehousing industry, construction personnel positioning, 4S store passenger flow analysis, underground mine and tunnel personnel positioning, material positioning, power station, smart factory, petrochemical plant personnel positioning, etc.
